Mode Conditioning Cables and Related Products.

Why Mode Conditioning Cables

Multimode fiber has bandwidth limitations. The current LAN network is mostly composed of 90% multimode fiber. As fiber optic cable plants are upgraded to single-mode fiber optic cables, we must also provide a means of transfer and continue to use installed multimode fiber optic cable equipment wherever possible. However, there are some technical problems if a single mode device is used on an existing multimode fiber optic cable device. when a fast-increasing laser pulse is applied to a multimode fiber, the difference in propagation time between different modes in the light causes significant pulse broadening.

To solve this problem, a mode conversion jumper was developed to solve the Gigabit Ethernet network application using a laser-based transmitter. Mode switching jumpers are a way to achieve device drive distances in applications that exceed the installed fiber optic equipment design goals. This allows customers to upgrade their hardware technology without the cost of upgrading fiber optic equipment. In addition, the mode conversion jumper significantly improves the data signal quality while increasing the transmission distance.

How Mode Conditioning Cables work

The mode conditioning cable is a double multimode jumper with a small length of single mode fiber at the beginning of the transport length. This cable is designed to regulate laser emission and achieve an effective bandwidth such that the effective bandwidth is close to the bandwidth measured using the overflow emission method. The mode conditioning cable allows the laser transmitter to operate at gigabit rates when using multimode fiber. Will not be limited by the modulus delay. The key point is that a greater number of modes are excited in the fiber, and trade-offs are made in the mold system, where the overflow emission conditions highly motivate the mold system, avoiding extensive excitation of individual mold systems having the same power level. The laser can be launched into a single mode fiber and then connected to a multimode fiber. The access point is off center with respect to the fiber core of the single mode fiber.

Different offsets are required for 50μm and 62.5μm multimode fibers. Engineers have found that an offset of 17~23μm can achieve a bandwidth equivalent to the effective mode of the 62.5μm multimode fiber-optic overflow emission method. An offset of 10~16μm is better for 50μm multimode fiber.

Mode Conditioning Cables Installation

When using 1000BASE-LX/LH, 10GBASE-LX4, and 10GBASE-LRM transceivers with conventional 62.5 or 50μm multimode fiber, the mode conditioning cable must be installed between the transceiver and the multimode fiber optic cable at both ends of the link. MODE CONDITIONING CABLE is required for all links on FDDI-grade, OM1 and OM2 fiber types.

The mode conditioning cable is mounted between the receiver and the terminal block. Two mode conditioning cables are required for each installed device. When installing the jumper, perform the following steps:

Step 1: Insert a single-mode fiber connector into the transmit hole of the transceiver;Step 2: Insert the other half of the dual connector into the receiving hole of the transceiver;Step 3: At the other end of the jumper, insert two multimode connectors into the terminal block;Step 4: Repeat steps 1 through 3 to position the second transceiver on the other end of the network link.

Multimode conversion fiber patch cords significantly improve the quality of optical signals in data transmission and extend the transmission distance, making them ideal solutions for single-mode and multi-mode interconnections in data centers.

Mode Conditioning Cables from Professional China Manufacturer

Mode conditioning cable for running Gigabit Ethernet on existing multimode fiber optic plants. These cables operate at 1300 nm to prevent modal dispersion, and their centerline offset stitching keeps the cores center-to-center, allowing for transitions from single mode to multimode. We offer a variety of mode adjustment cable options, from various types of connectors to different fiber modes to jackets of different lengths. We offer a variety of fiber optic connectors including LC/UPC, SC/UPC, FC/UPC, ST/UPC, LC/APC, SC/APC, FC/APC, E-2000 and MTRJ.

Mode conditioning cables are built as simple duplex patch cables so they can be easily installed in the system without the need for additional components or hardware. They can range in length from one meter to almost any network terrain. As direct manufacturer of the mode conditioning cables, we supply high quality cables with very competitive prices.

Overseas Business
70%
Employees
275
Satisfaction
100%

Mode Conditioning Cables Manufacturer

Fiber Optics for Data Centers

Fiber Optics for Data Centers

Fiber Cables, Transceivers and Components.

We have high speed fiber optic cables and transceivers for data centers, including 1G,10G,40G,100G and more.

Fiber Optics for FTTX

Fiber Optics for FTTX

Indoor cables, outdoor cables, FTTX cables.

We have various types of cables for FTTX projects, including indoor cables, outdoor cables, ADSS, FTTH, FTTA.

Professional Team

Professional Team

Professional team with rich experience.

We have a team of experienced staff. Most of our staff have over 10 years’ experience in this industry.

"For quality Mode Conditioning Cables and equipment you can trust us, here you get reliable products, fast delivery and low prices."

Mode Conditioning Cables Supplier

Worldwide Shipping

Worldwide Shipping

Over the years, our fiber optic cabinets and related equipment are chosen by clients from all over the world, we ship goods to over 100 countries and regions on the planet, including Asia, Europe, America, Oceania and Africa.

High Quality

High Quality

Thanks to our skilled workers, experienced engineers and the advanced manufacturing equipment, we are able to provide the top quality fiber optic cabinets and components to customers.

Diversified Products

Diversified Products

We make a wide range of fiber optic cables, components, closures and related communication equipment, together with the power and electric modules, to use with our network fiber optic cabinets.

Cost Effective

Cost Effective

As direct manufacturer, we offer low price to customers to support them win in the business. With mass production and long history, we are able to cut cost and supply competitive prices fiber optic cabinets.

Fast Delivery

Fast Delivery

For small quantity, we ship by couriers like DHL/FedEx/UPS/TNT/EMS, for big quantity orders, we ship by air or by sea. As specialized fiber optic cabinets manufacturer, we have a fast delivery for both small and big quantity orders.

We Make More Than Mode Conditioning Cables

Fiber Optic Patch Cord

20316545

We make fiber optic patch cable, LC,SC,ST, E2000,MU, VF45,FC, MT-RJ, MPO, Volition,MTP, DIN, D4, SMA, Escon,FDDI and more. UPC polish, APC polish connectors.

Read More

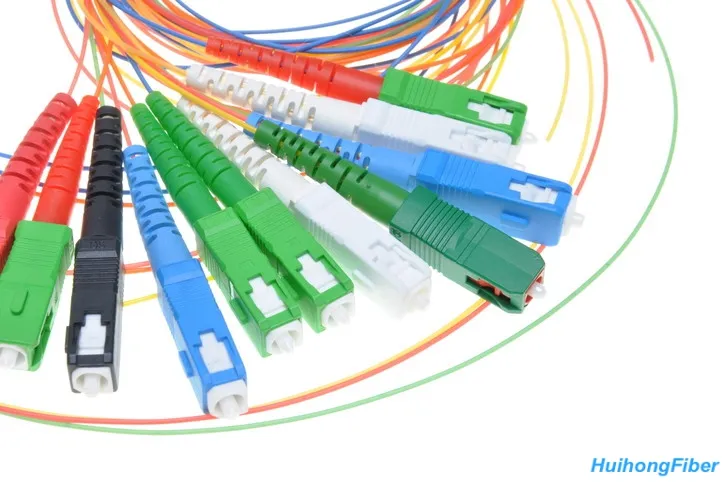

Fiber Optic Pigtails

25254657

We are supplier of fiber pigtails SC, SC/APC, ST, ST/APC,FC, FC/APC, LC, LC/APC, MT-RJ ,MPO,MTP,E2000,fiber optic pigtails,simplex,duplex,fan out pigtails.

Read More

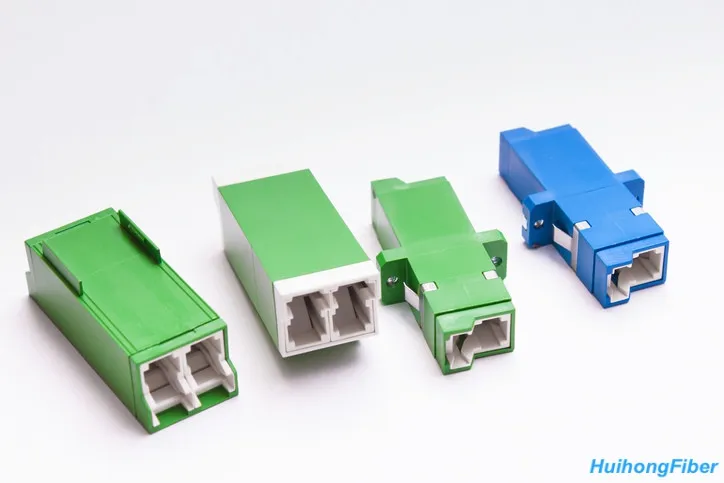

Fiber Optic Adapters

8735278

Fiber Optic Adapters FC, SC, ST, LC, MT-RJ, MU, simplex, E2000, FC/APC,duplex, SC/APC, LC/APC, E2000/APC ,quad, mating sleeves, hybrid fiber optic adapters.

Read More

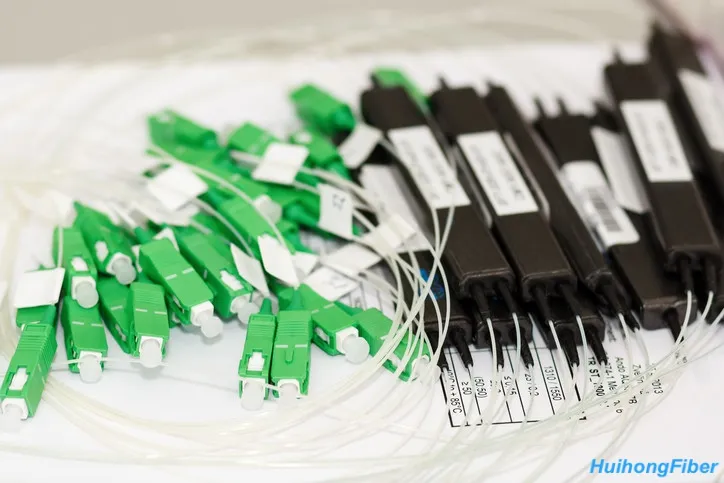

Fiber Optic Splitters

8251920

Bare fiber PLC splitter, blockless PLC splitter,LGX PLC splitter, fused fiber optic splitter, rack mount fiber splitters and custom made fiber splitter boxes.

Read More

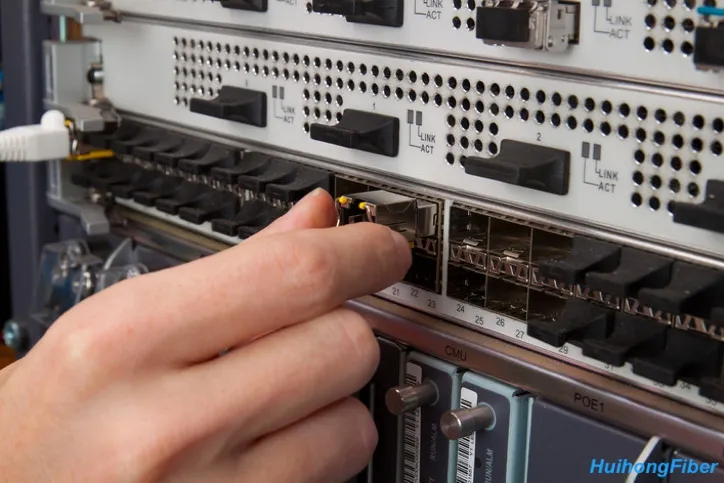

Fiber Optic Transceivers

17843783

Transceivers for major players in the industry, SFP,XFP,SFP+,GBIC, Xenpak,X2,BIDI,CWDM,DWDM,QSFP, transceivers cables, QSFP28, QSFP Plus, CXP, CFP, CFP2 and more.

Read More

Fiber Optic Cables

8817066

Indoor fiber optic cables, outdoor cables, FTTH cables, single mode, multimode, OS1,OS2,OM1,OM2,OM3,OM4,OM5 and more.

Read More

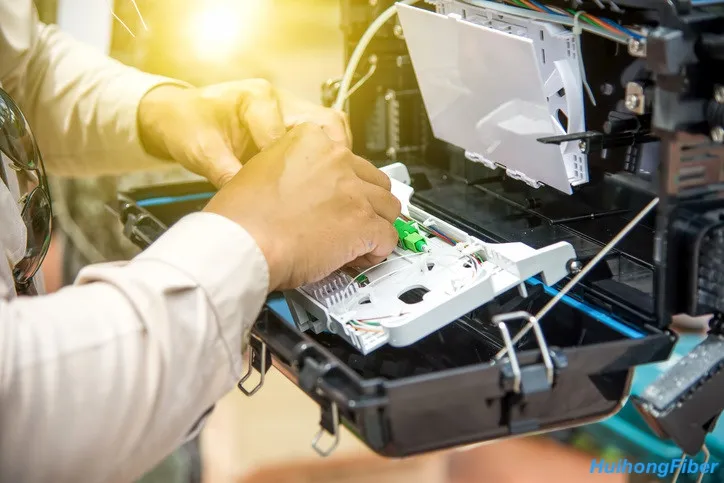

Fiber Optic Trays

47553872

Fiber trays, fiber optic modules, terminal boxes, custom fiber optic components, to use in fiber patch panels, splice closures, distribution units and boxes.

Read More

Custom Design

18719308

Custom design fiber optic cabinets, boxes, closures, cables, modules, transceivers and more, welcome to contact us for your fiber optic products needs.

Read More

Professional Mode Conditioning Cables Manufacturer

The basic principle of this approach is that the fiber optic cable will emit laser light into a small portion of the single mode fiber. The other end of the single mode fiber is connected to the multimode portion of the cable and is offset from the center of the multimode fiber. This type of jumper is required for transceivers that use both fiber types, single mode and multimode fiber, such as 1000BASE-LX/LH, 10GBASE-LX4, and 10GBASE-LRM. When the laser is launched into the multimode fiber, the transceiver can generate a complex signal, which may cause a mode delay difference, and the resulting mode delay difference will severely limit the transmission distance. The mode conditioning cable clears these complex signals and solves the problem at the receiver. Here is a picture showing the mode conditioning cable and the typical method of connecting to the transceiver module. If necessary, it can be inserted between the transceiver module and the multimode fiber optic cable device.
